Specializes in Thin-film Materials Nanotec Corp.

NTH Series

NTH-1000 – HCD Ion Plating Equipment

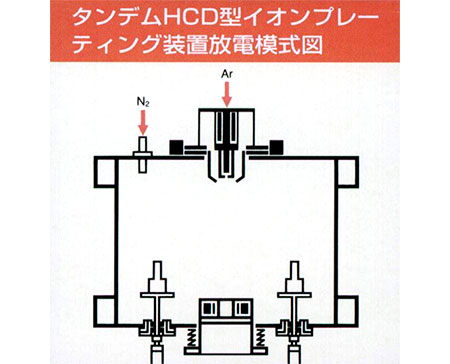

The NTH-1000 uses a tandem hollow cathode discharge (HCD) technique to deposit high quality TiN, CrN, TiCN, and TiCrN thin films on cutting tools, machine parts, and molds.

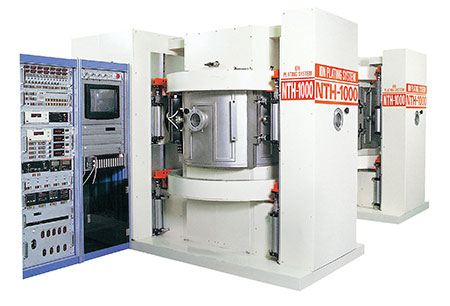

NTH-1000

Being of modular construction, NTH-1000 coating capabilities may be enhanced by adding cathodic arc, DLC, and/or sputter sources to the port openings as your coating needs develop in the future.

The NTH-1000 utilizes a SCADA/MMI/PLC control system for convenient user operation. Control system features include:

  • pentium-class computer with high-speed control link
  • full graphical user interface
  • process parameters set by downloadable speadsheet recipes
  • one-button automatic process operation
  • touch screen
