NTH Series

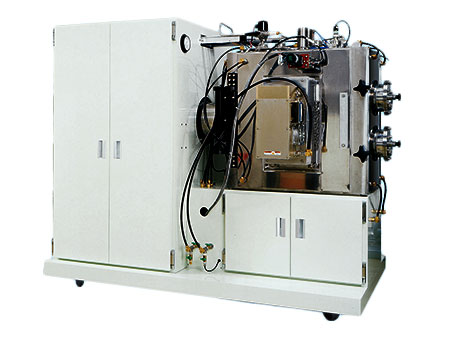

DASH-700: Multi-Processing Capability

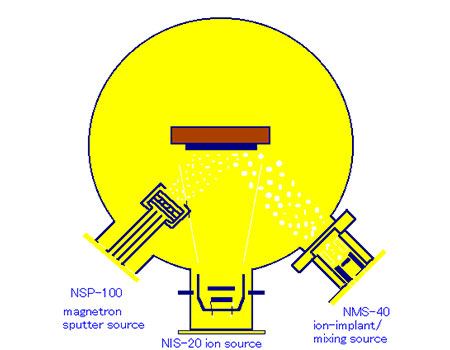

The Multi-700 is the latest addition to our product line. It uses several PVD and other deposition techniques to deposit multi-layer thin-films. Current deposition techniques include: dc hot filament plasma PVD, ion-mixing(implantation), DC and RF magnetron sputter, and both cathodic arc and hollow cathode discharge ion plating. There are 5 flange ports which allow up to five process sources to be added to the chamber at one time.

Current applications include:

  • Ion Mixing DLC
  • Sputtered WC-DLC
  • Sputtered Si-DLC
